NYCSCA | 216 Queens
Client
New York City School Construction Authority
Architect
SBLM Architects
Completion
2026
Building Addition and Modernization
TECHNICO Construction Services Inc. is proud to support the NYC School Construction Authority in delivering the new addition and modernization of J.H.S. 216 in Queens, NY. The new 3-story addition totals approximately 52,000 square feet of gross floor area, with about 17,300 SF per floor. Designed to serve grades 6 through 8, the project increases instructional capacity and enhances infrastructure to accommodate a projected enrollment of 473 students.
The project

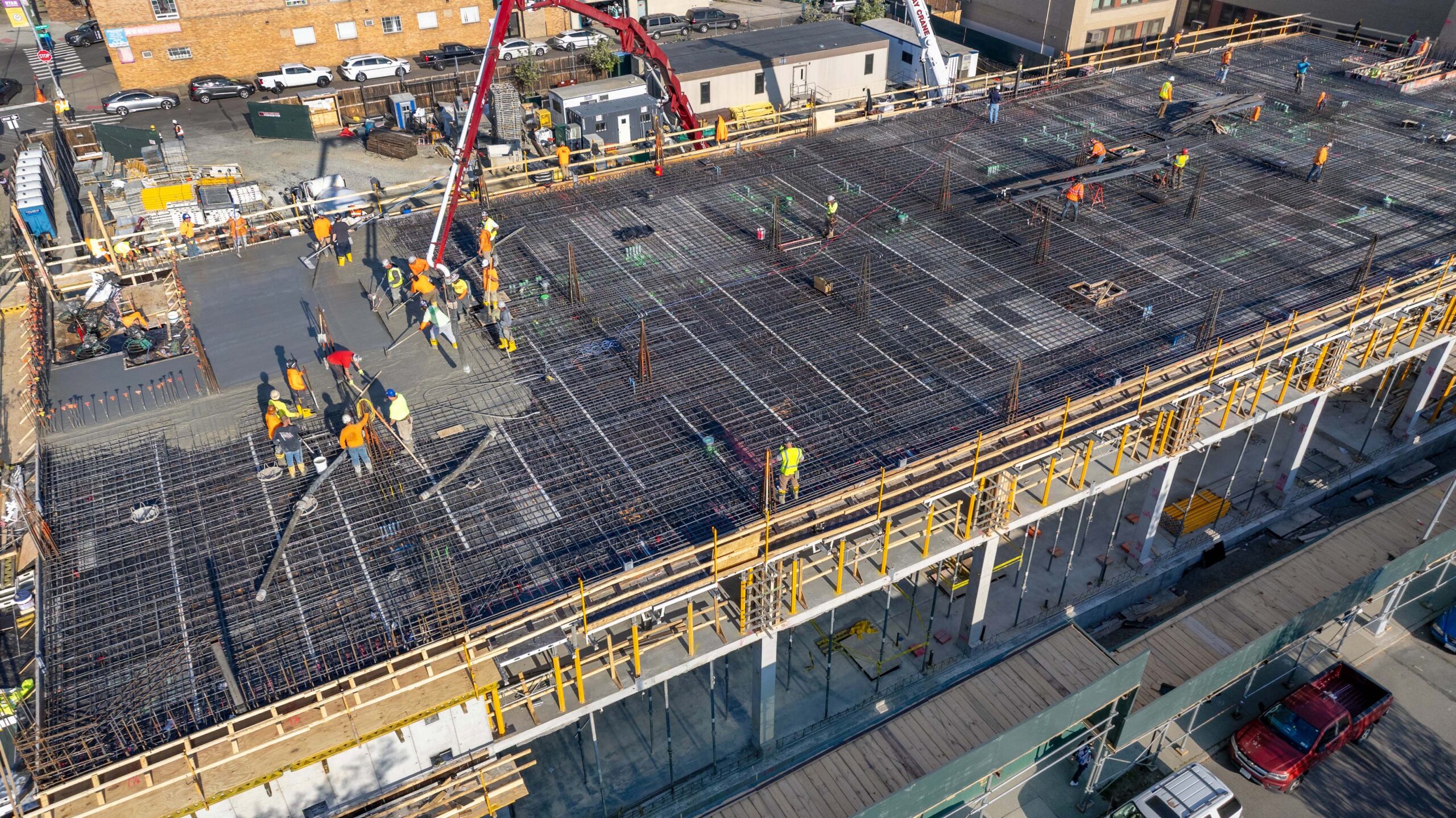

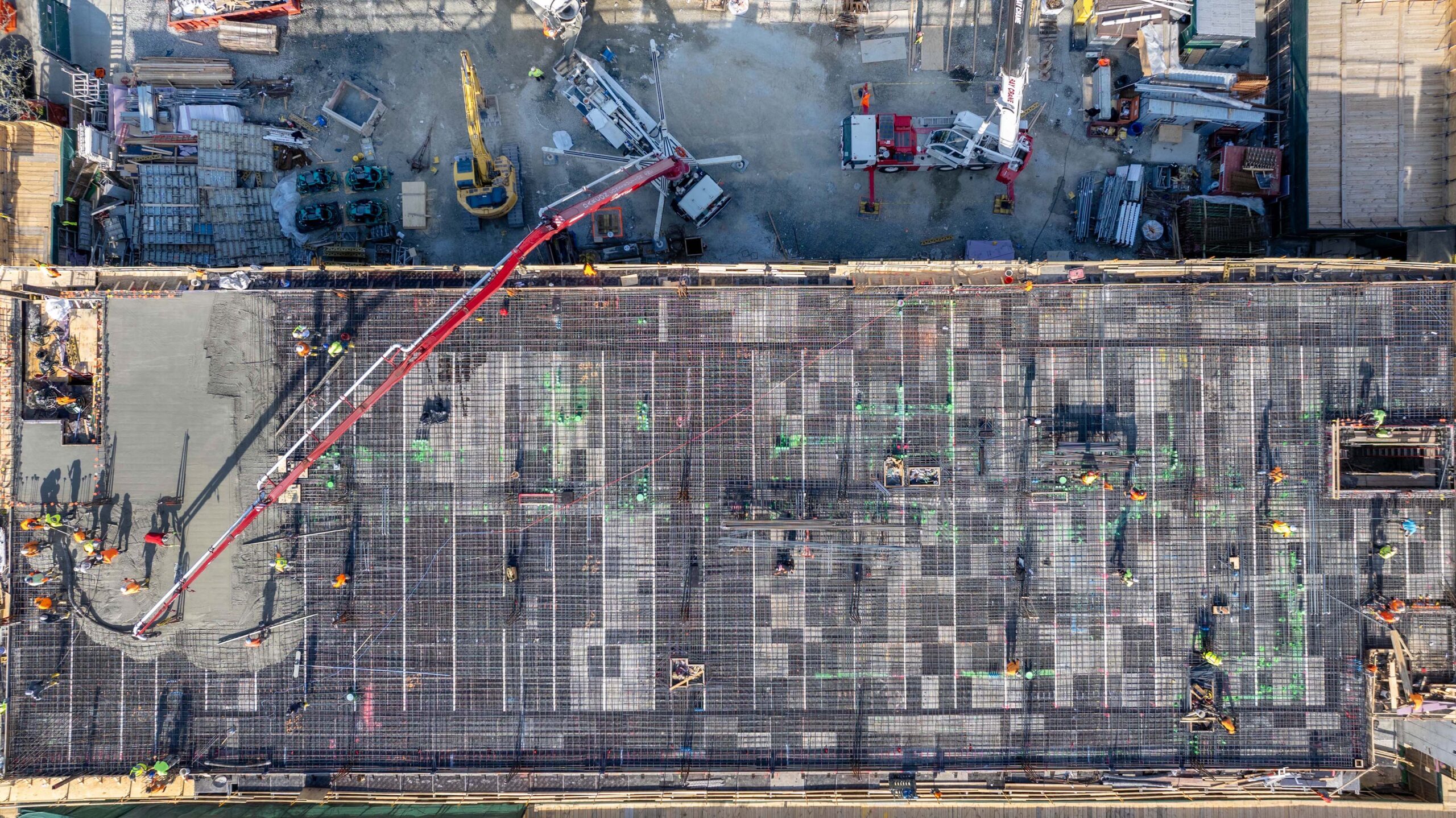

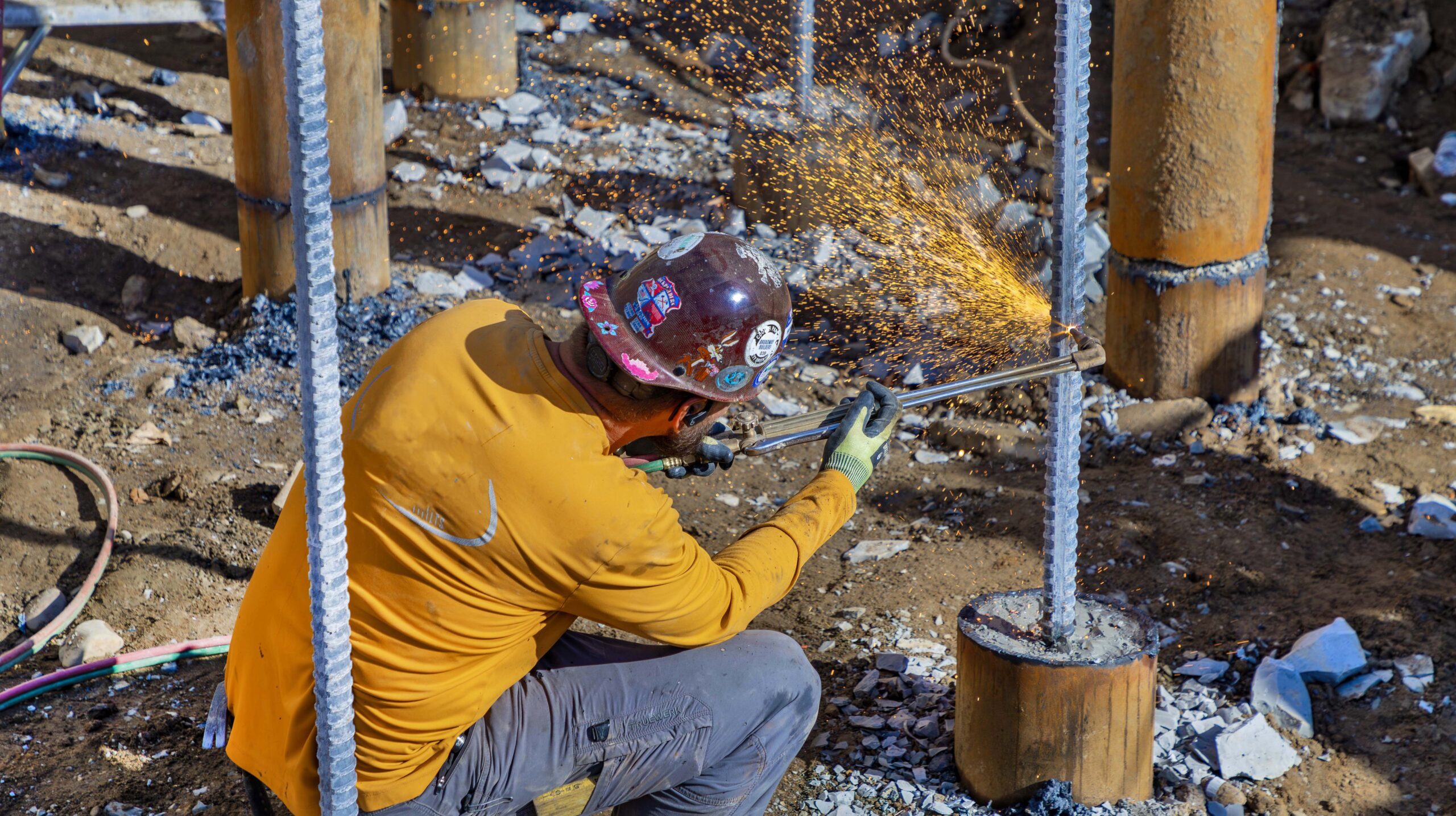

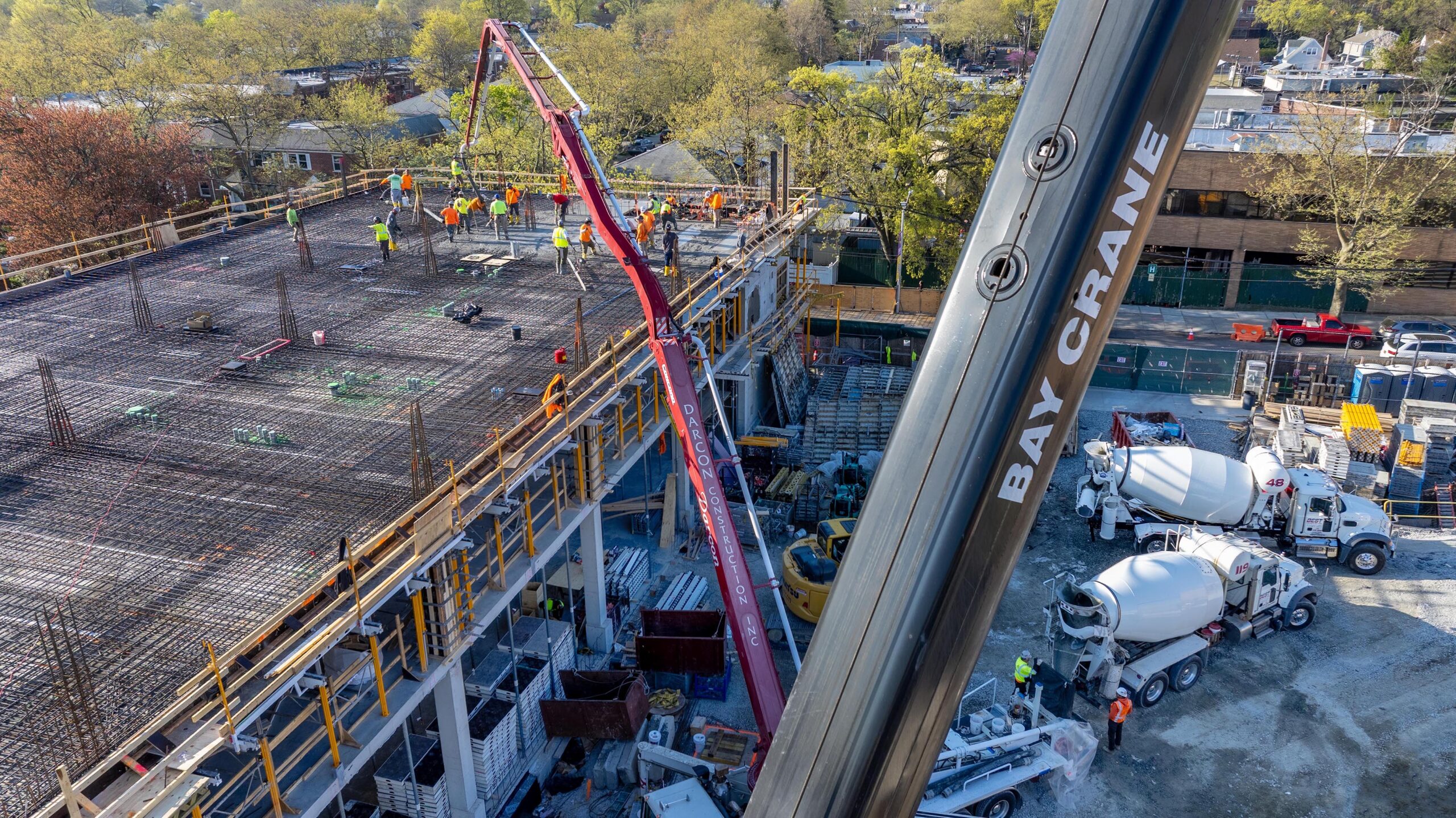

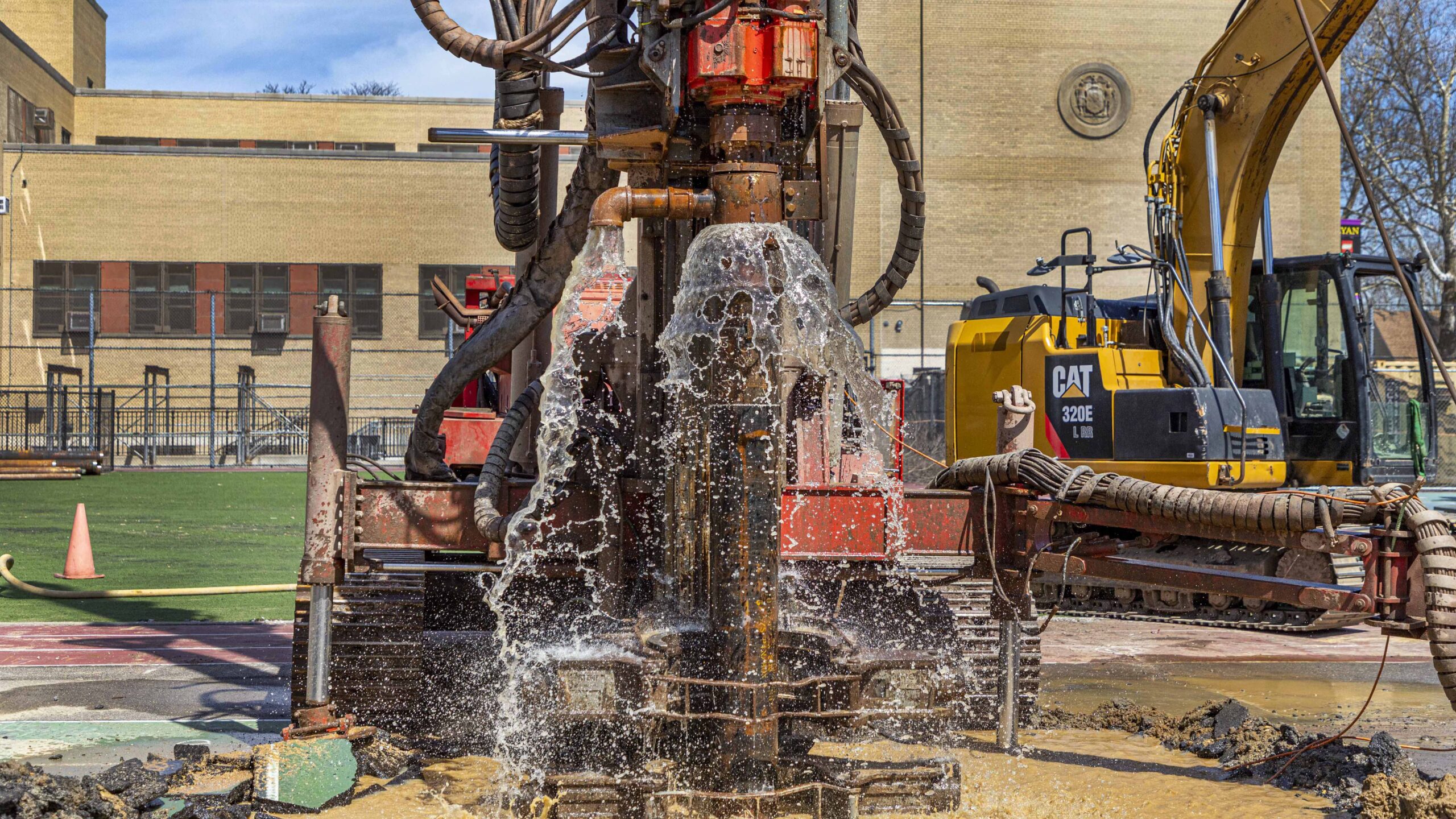

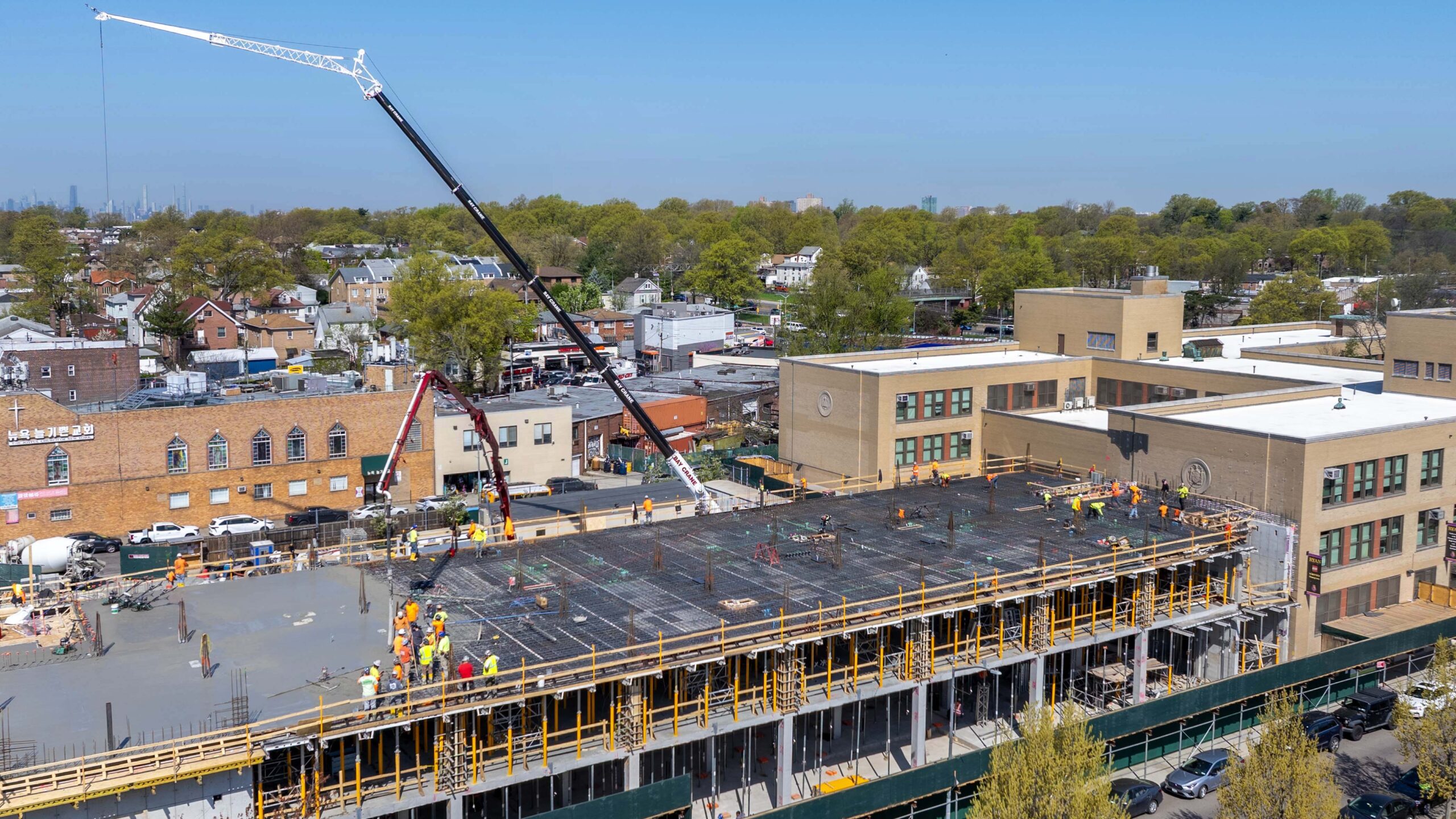

The project includes the construction of a new three-story addition, integrated seamlessly with the existing structure, supported by micropile foundations and a reinforced concrete frame. Architectural precast wall panels and high-performance aluminum windows give the building a modern and resilient façade. A fluid-applied protected membrane roofing system will be topped with a green roof to support sustainability goals.
Interior spaces comprise of classrooms, research labs, conference rooms, faculty and student offices, and shared support areas. Finishes comply with SCA standards and include resilient flooring, acoustic ceilings, custom casework, and durable wall treatments.
The project features state-of-the-art mechanical systems, including VRF heat pumps, high-performance rooftop units, and HVAC designed for energy efficiency and comfort. Acoustically lined ductwork and sound traps reduce noise, while dedicated exhaust systems serve toilet rooms and telecom spaces. Plumbing upgrades include heat pump water heaters, medical-grade fixtures, and advanced filtration. Fire protection is provided by a standpipe/sprinkler system with booster pumps.
Integrated technology systems include IP-based sound and intercom, intrusion detection, interactive whiteboards, and a digital video surveillance system (IPDVS), all supported by structured cabling and fiber optic infrastructure. Low voltage systems also include telephone, data, fire alarm, clock, and public address systems.
The development
Renovation work encompasses selective demolition of existing structures, including partial removal of exterior brick, CMU, and plaster walls, along with the complete removal of an existing column from the first to third floors at the west elevation. Interior demolition includes partitions, finishes, lighting, and doors in key areas such as locker rooms, classrooms, and restrooms. Additional scope includes the removal and replacement of windows at the west courtyard elevation across all three floors, installation of new corridor extensions with 4-hour fire-rated breakthrough walls, and curb and pipe openings on the roof for new mechanical equipment.
CONTINUED DEVELOPMENT
Phased construction enables continuous school operations throughout the project, with temporary facilities supporting uninterrupted instruction. Designed in accordance with the NYC Green Schools Guide, the project targets LEED Silver equivalency, to promote a sustainable and high-performance learning environment.
This project reflects TECHNICO’s ongoing commitment to delivering high-quality, forward-thinking educational spaces for future generations.
